Used Denver Skema

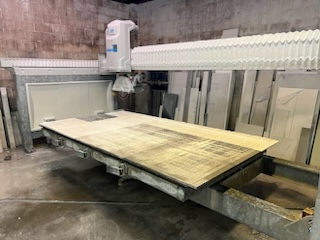

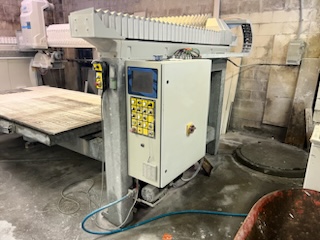

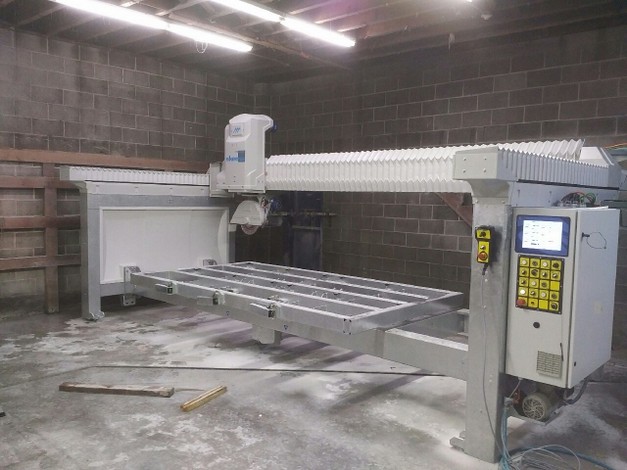

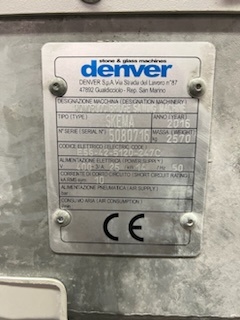

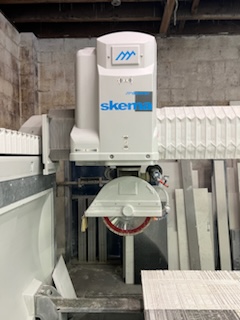

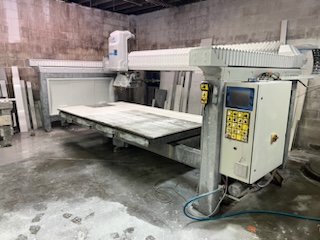

Used 2016 Denver Skema Bridge Saw
with: motorized 180 degree C axis rotation
$80,000.00 CAD.
Dimension of the work table mm 3150 x 1750 (inch 124" x 68.9")
Stroke X-axis mm 3500 (inch 137.8")
Stroke Y-axis (in and out) mm 1900 (inch 74.8")
Stroke Z-axis (up and down) mm 370 (inch 14.4")
Motor power kW 11, Hp 15
Max rotation on the spindle unit rpm 1400
Dimensions (LxWx H) mm 5850 x 2970 x 2700
inch 230.3" x 116.9" x 106.3"
Weight kg 3200 (lbs 5622)

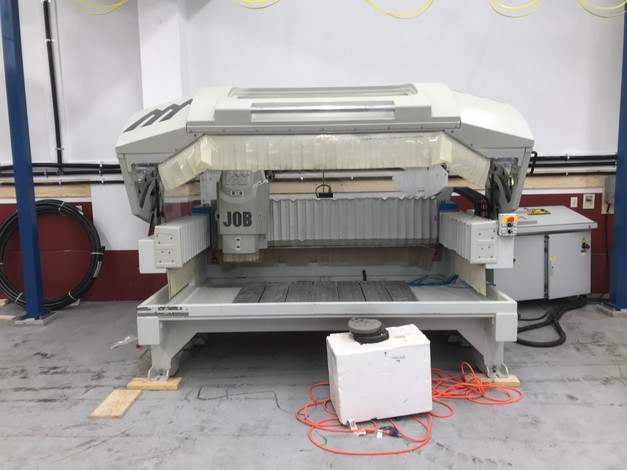

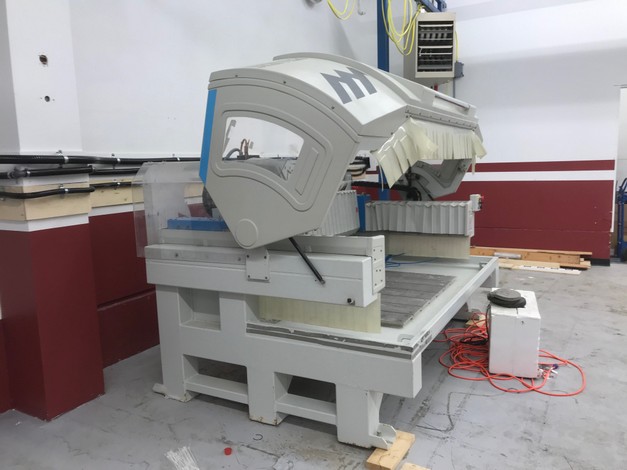

Used Denver CNC router
Used 2015 Denver Quota
$70,000.00 CAD.
Machine dimensions (LxWxH) 205.9 x 146 x 100”
(LxWxH) mm 5230 x 3710 x 2540
Work bench (LxW) 121 x 59” - mm 3200 x 1500
X-axis stroke
on linear guides 132” - mm 3350
X-axis speed
(brushless motor) inches/min 0 ÷ 1968 - m/min 0÷50
Y-axis stroke
on linear guides 65” - mm 1650
Y-axis speed
(brushless motor) inches/min 0 ÷ 984 - m/min 0÷25
Z-axis stroke
on linear guides 20” - mm 520
Used Scandinvent CNC router
Used 2013 Scandinvent CX4
$45,000.00 CAD.
Dimension of the work table mm 3800 x 1900
inch 153.5 x 74.8
Cutting stroke X-axis (along the back) mm 3350
inch 131.8
Cutting stroke Y-axis (in and out) mm 1900
inch 74.8
Cutting stroke Z-axis (up and down) mm 450
inch 17.7
Motor power kW 9.2
Hp 12.3
Max rotation on the spindle unit rpm 12000
Dimensions (LxWx H) mm 4500 x 3050 x 2900
inch 177 x 120 x 114
Weight kg 4500
lbs 9920
